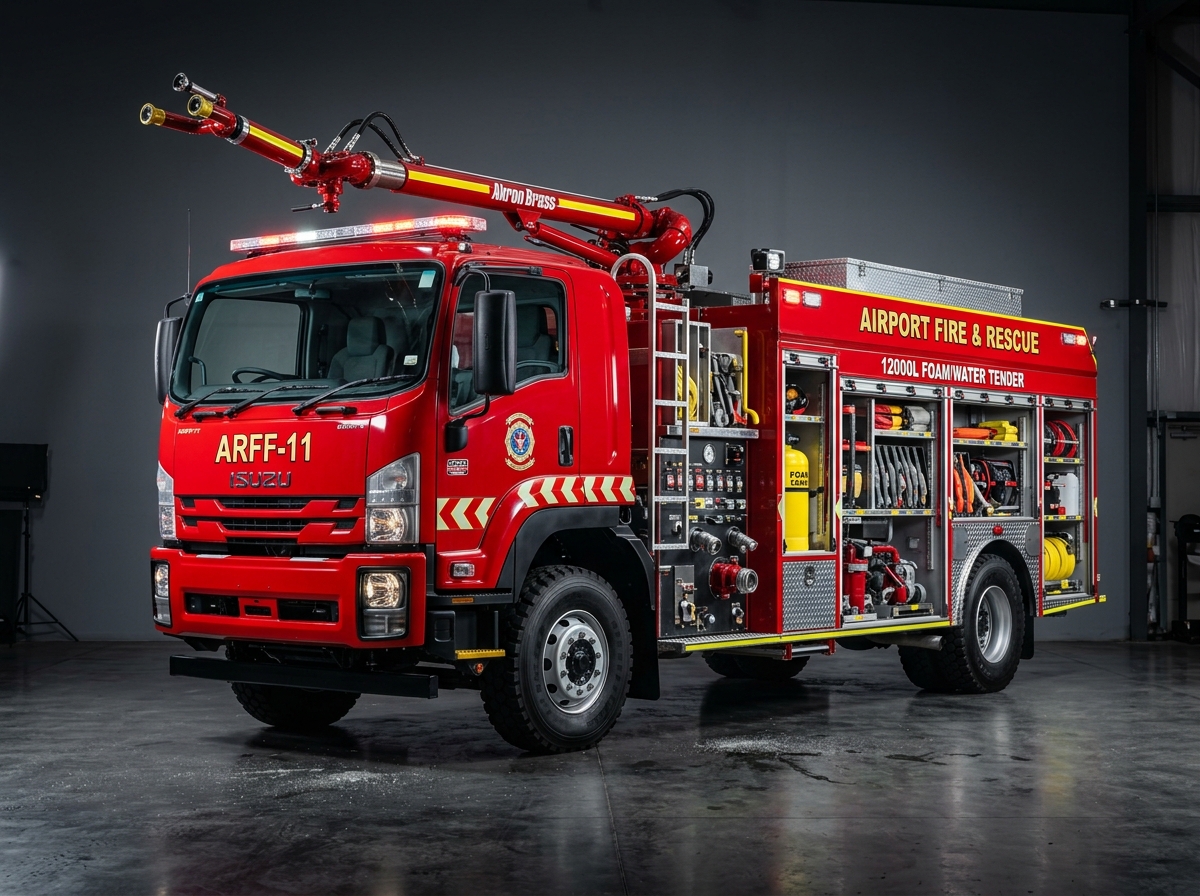

CLW ISUZU 12,000L Airport Foam Fire Fighting Truck
Our Price
98,500.00৳
DEALER INFO
861*******
Extinguishing Agent
9000L Water + 3000L Foam
Fire Pump Flow
60 L/s (3600 L/min)
Fire Cannon Range
u2265 65 Meters
Engine Power
420 HP / 1900 rpm
Crew Capacity
6 Firefighters (2+4)
Tank Material
304/316L Stainless Steel
PRODUCT HIGHLIGHTS
Rapid Response 0-80 km/h
High power-to-weight ratio accelerates rapidly to airport emergency scenes within 25 seconds.
Stainless 316L Tank
High-grade surgical stainless steel foam container withstands all harsh fire concentrates.
Wireless Remote Monitor
360u00b0 joystick remote control allows the operator to combat fires from up to 100 meters away.
Aluminum Rolling Shutters
Anodized aluminum alloy roll-up doors with automatic LED interior tool locker lighting.
TECHNICAL SPECIFICATIONS
Show All
BASIC SPECIFICATIONS
SAMPLE DATA
Model Designation
CLW5330GXFPM120
Chassis Brand
ISUZU GIGA Heavy Duty
Drive Type
6u00d74 High-Speed Platform
Overall Dimension
9,850 u00d7 2,500 u00d7 3,650 mm
Max Speed
105 km/h
Gross Vehicle Wt
33,000 kg
ENGINE & TRANSMISSION
SAMPLE DATA
Engine Model
ISUZU 6UZ1-TCG50 Turbocharged Intercooled
Power Output
309 kW (420 HP) @ 1,900 rpm
Displacement
9,839 cc (9.8 L)
Transmission
ZF 8-Speed Synchronized Manual with PTO
FIREFIGHTING SUPERSTRUCTURE
SAMPLE DATA
Water Tank Capacity
9,000 Liters (SUS304)
Foam Tank Capacity
3,000 Liters (SUS316L)
Fire Pump Model
Shanghai CB10/60 Low-Medium Pressure
Pump Rating
60 L/s @ 1.0 MPa (Pressure 10 bar)
Roof Fire Monitor
PL48 Dual Water / Foam Monitor
Water Throw Range
u2265 65 meters @ 1.0 MPa
Foam Proportioning
Automatic 3% - 6% Adjustable Mixer
CHASSIS & EMERGENCY CABIN
SAMPLE DATA
Cabin Configuration
Double Row 4-Door All-Steel Welded Structure
Crew Seats
1+1 Front + 4 Rear (with SCBA brackets)
Warning Systems
100W Electronic Siren + 360u00b0 Red LED Lightbar
Emergency Lighting
Pneumatic Mast Telescopic Searchlight (4 u00d7 500W)
WARRANTY & STANDARDS
SAMPLE DATA
Certification
NFPA Compliant, CCC Fire Equipment, ISO9001
Warranty
24 Months Superstructure Warranty
